Photovoltaic and electrical installation testers
Photovoltaic electrical installation safety testing is a special area of electrical installation safety testing as it also entails tests and measurements on DC systems, which are relatively uncommon in most domestic, commercial and to a certain extent industrial environments. There is also the addition of photovoltaic-specific tests that are outside the realm of standard test and measurement procedures.

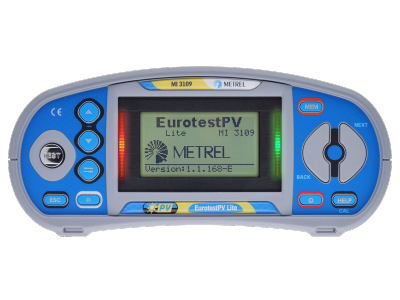

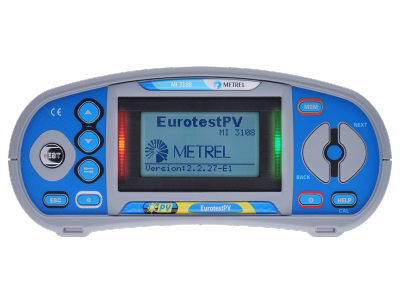

Metrel has two dedicated photovoltaic electrical installation safety testers. One representing a complete test and measurement solution with support for line/loop impedance testing, type A, AC, B RCD testing, and power and energy measurements, while the other is a more streamlined testing tool for simplified assessment of photovoltaic installations.
Features
Features
- Uoc, Isc, irradiance and temperature measurements.
- I - U curve analysis of modules and strings on PV systems.
- MPP determination and STC calculations.
- Irradiance and temperature logger.
- Insulation under voltage of PV panels and strings.
- Uoc, Isc, irradiance and temperature measurements.
- I - U curve analysis of modules and strings on PV systems.
- MPP determination and STC calculations.
- Irradiance and temperature logger.
- Insulation under voltage of PV panels and strings.
PV installation testing:
- Zloop L-N and L-L, RCD protection.
- Continuity and earth bond testing.
- Insulation testing through switchboard (at circuits).
- Over-voltage protection testing.
- Earth / ground resistance testing.
- TRMS clamp-on leakage current measurement.
Power measurements on AC and DC:
- DC / AC TRMS clamp-on current testing.
- Efficiency of solar panels and inverters.
Electrical safety testing
Applications
- Photovoltaic installations.
- Surge protection devices on a solar plant.
- Low voltage photovoltaic installations.
*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
