Teaching and training future electrical engineers in the importance of grounding of power grid objects (pylons, transformers, substation components etc.) and complex industrial systems is incomplete without hands-on experience in grounding analysis on location with appropriate equipment. Lack of access to such objects and other factors often preclude this, necessitating the use of didactic simulators that can fit inside a classroom or are, even better, sufficiently small for desktop use.

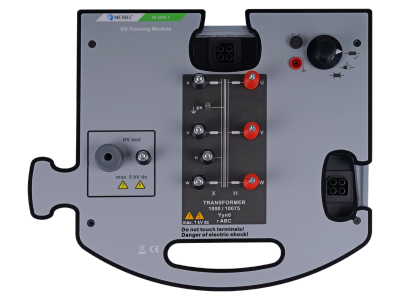

Metrel offers two such desktop training simulators (modules); one simulating a power grid pylon and the other a power transformer. They can be used standalone or combined to form a miniaturized and simplified simulator of an electric grid with two pylons and two transformers. Both modules have easy to reach terminals for connection to HV test equipment and can simulate a variety of errors with a turn of a dial.
*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
